Name: Asus Prime A320M-E AMD AM4 uATX Motherboard
Brand: Asus
Price: 6000.00 BDT
Availability: OutOfStock

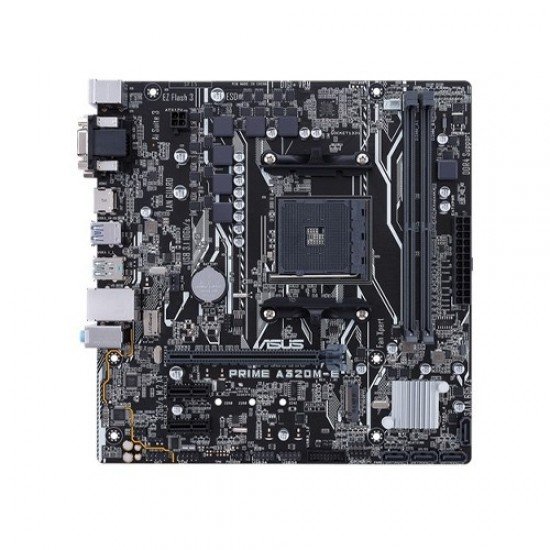

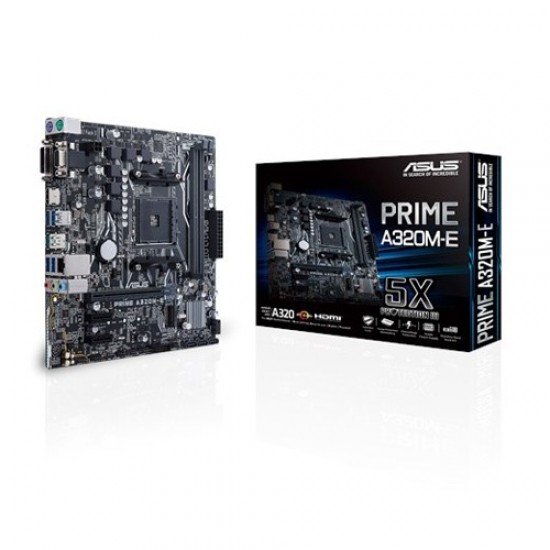

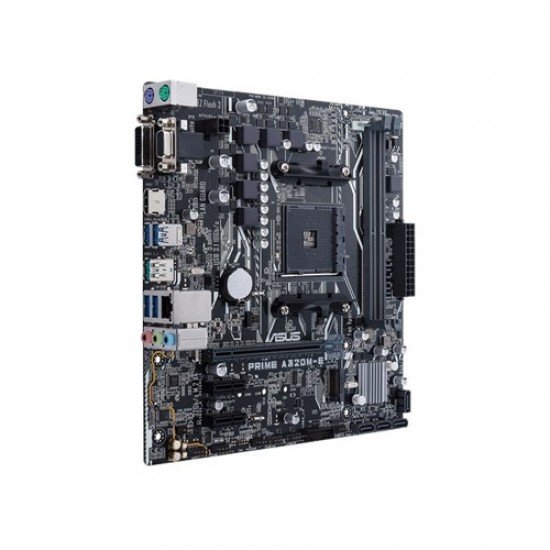

Asus Prime A320M-E AMD AM4 uATX Motherboard

In Stock

Asus Prime A320M-E AMD AM4 uATX Motherboard

Stock: In Stock
Brand: Asus
Model: Prime A320M-E

Based on 0 reviews. - Write a review

6,000৳

Ex Tax: 6,000৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- 5X Protection
- LED illumination
- Onboard USB 3.1
- One-stop controls

View More Info

Specification

Physical Specification
Type	Dual Channel Memory Architecture
Slots	2
Supported Memory	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory	64GB for 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 32GB for AMD 7th Generation A-Series/Athlon X4 Processors
Basic Information
Supported CPU	AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors
Chipset	AMD A320
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI	3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset 2 x PCIe 2.0 x1
M.2 Socket	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
Graphics
Graphics	Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	2048 MB

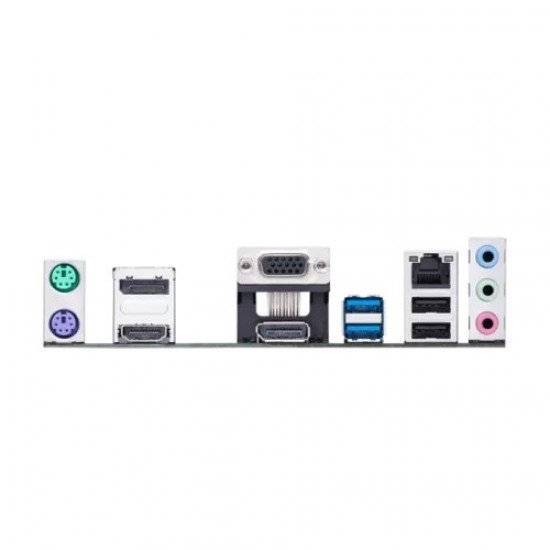

Connector & Ports
HDMI	1 x HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
USB (s)	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) AMD A320 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Supported Storage	AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector
TPM (Trusted Platform Module )	N/A
DVI-D (s)	1x DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Others Information
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
Warranty Information
Manufacturing Warranty	03 years

Description

Asus Prime A320M-E AMD AM4 uATX Motherboard

The Asus Prime A320M-E is a versatile and reliable micro-ATX motherboard designed for AMD AM4 processors, offering a perfect balance of performance, stability, and affordability for everyday computing and light gaming. Built with Asus’s commitment to quality, the Prime A320M-E is ideal for users seeking a solid foundation for building or upgrading their PC without compromising on essential features. Featuring 5X Protection, this motherboard ensures long-lasting durability and system stability. Its robust safeguards protect against overcurrent, overheating, and voltage fluctuations, giving users peace of mind even during extended use. The motherboard’s LED illumination adds a touch of style to your build, offering subtle lighting effects that enhance your system’s aesthetic without being overpowering. Connectivity is never an issue with onboard USB 3.1 support, which provides high-speed data transfer for external drives, peripherals, and other devices. This ensures smooth, lag-free interactions when transferring large files or connecting multiple devices simultaneously. The one-stop controls feature streamlines system management, allowing users to tweak performance, monitor system health, and optimize fan speeds with ease through intuitive software tools. This makes it accessible for both beginners and experienced users who want to fine-tune their systems efficiently. The Asus Prime A320M-E also supports essential modern technologies, including DDR4 memory, multiple storage options, and expansion slots, allowing flexibility for future upgrades. Its compact uATX form factor ensures compatibility with a wide range of PC cases, making it an excellent choice for space-conscious builds. In summary, the Asus Prime A320M-E AMD AM4 uATX motherboard combines reliability, essential connectivity, and user-friendly controls in a cost-effective package. Whether you are building a home office PC, a budget-friendly gaming rig, or a general-purpose computer, this motherboard provides a solid, dependable foundation that balances performance, protection, and style.

Features of Asus Prime A320M-E AMD AM4 uATX Motherboard

Supports AMD AM4 Processors – Compatible with AMD Ryzen and 7th Gen A-series/Athlon CPUs.
5X Protection – Enhanced hardware safeguards for durability and stability.
LED Illumination – Subtle onboard lighting to enhance system aesthetics.
Onboard USB 3.1 – High-speed connectivity for faster data transfer with peripherals.
One-Stop Controls – Easy system tuning, monitoring, and fan optimization via software.
DDR4 Memory Support – Supports dual-channel memory for smooth multitasking.
Micro-ATX Form Factor – Compact size for small to mid-sized PC cases.
Multiple Expansion Slots – Flexible options for graphics cards, storage, and add-on cards.
Reliable Cooling Solutions – Designed to maintain optimal temperatures under load.
Easy Upgrade Path – Supports additional RAM and storage for future expansion.
