Specification
| Camera Feature |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Effective Pixels |
4 Megapixel |
| IR Distance |
Up to 30m |
| Lens |
| Type |
Fixed |
| Focal Length |
2.8 and 4 mm optional |
| Aperture |
F1.6 |
| Angle of View |
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Others |
Lens Mount: M12 |
| Physical Specification |
| Dimension |
Ø 121.4 mm × 97.7 mm (Ø 4.8" × 3.8") |
| Weight |
Approx. 550 g (1.2 lb.) |
| Power |
12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Interface |
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Warranty |
| Warranty |
1 Year |

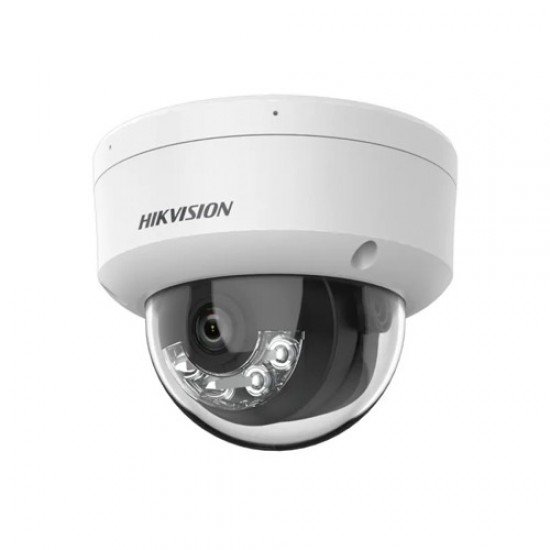

Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera
Hikvision DS-2CD1143G2-LIU is a state-of-the-art 4MP Smart Hybrid Light fixed dome network camera designed for versatile outdoor surveillance. Featuring a 1/3" Progressive Scan CMOS image sensor, this camera delivers high-quality imaging with a maximum resolution of 2560 x 1440 pixels, ensuring that every detail is captured with clarity. The camera is equipped with a fixed lens available in 2.8 mm and 4 mm options, providing flexibility in installation and allowing users to choose the best focal length for their specific monitoring needs.
With a wide horizontal field of view of 98° for the 2.8 mm lens and 78° for the 4 mm lens, the DS-2CD1143G2-LIU is ideal for covering large areas. Its advanced Smart Hybrid Light technology enhances visibility in low-light conditions, combining infrared and white light illumination to provide clear images even in complete darkness, with an IR distance of up to 30 meters.
The camera is designed for durability and ease of installation, measuring Ø 121.4 mm × 97.7 mm and weighing approximately 550 g. It supports Power over Ethernet (PoE), allowing for flexible installation options without the need for additional power sources. The device also features robust security measures, including password protection and watermarking, ensuring that your surveillance footage remains secure.
Additionally, the DS-2CD1143G2-LIU supports advanced features such as motion detection and human and vehicle detection, making it a smart choice for modern security needs. With a 1-year warranty, this camera is an excellent investment for those seeking a reliable, high-performance surveillance solution that combines advanced imaging technology with user-friendly functionality.
